SMGL2

Portable low speed grinder produces
uniform size with minimal dust

SMGL2-1
SMGL2-2
SMGL2-3
SMGL2-4
SMGL2-5
SMGL2-1
SMGL2-2
SMGL2-3
SMGL2-4
SMGL2-5
previous arrow
next arrow

The SMGL2 packs a lot of smart engineering into little grinders. Combining low-speed, energy-saving, granulating technology with primary and secondary blades, the SMGL2 grinds to a consistent size. Dust and cutting errors are reduced, and no “longs” can slip through. This results in regrind that flows more consistently into your production, moving easily through your material handling systems and molding with fewer rejects.

smlg2-1

Quiet, safe operation

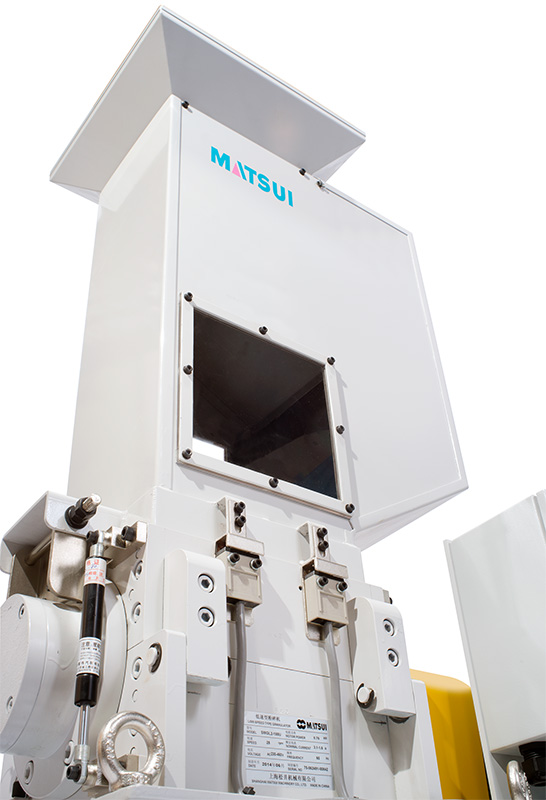

The SMGL2 incorporates a steel damper plate to significantly reduce noise, so it operates quietly and efficiently. Units are also equipped with two limit switches and an emergency shut-off button. An integrated thermostat helps prevent the motor from overheating.

Small footprint and portable

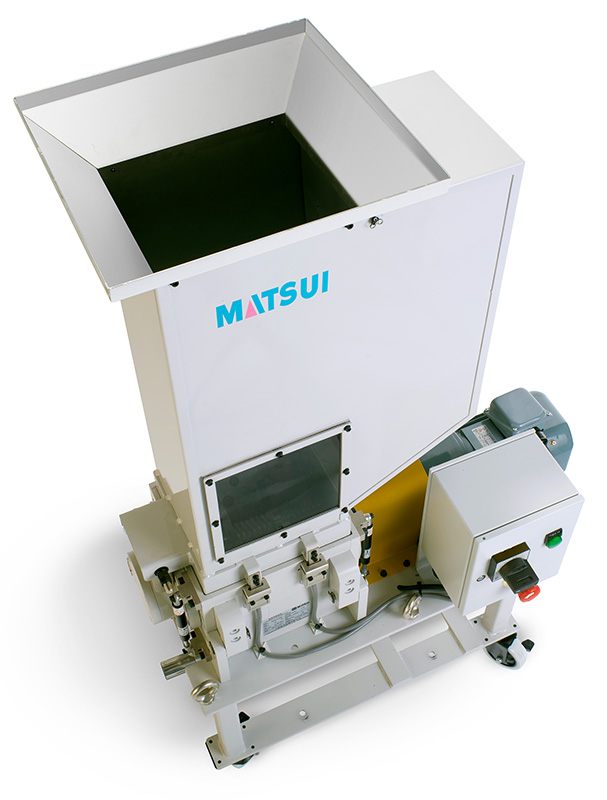

The SMGL2 has a tiny footprint, so it easily glides into place, tucking neatly into a convenient, out of the way place, or snugly up against a machine.

Easy-to-clean and virtually maintenance free

Stainless steel components and easy-to-clean design make changing material and color a snap. And both units are screenless, so there is even less maintenance and no screen to wear out and replace. The smart, simple design means years of reliable, maintenance-free operation.

smgl2-2

Clean up and resin changes are fast and easy

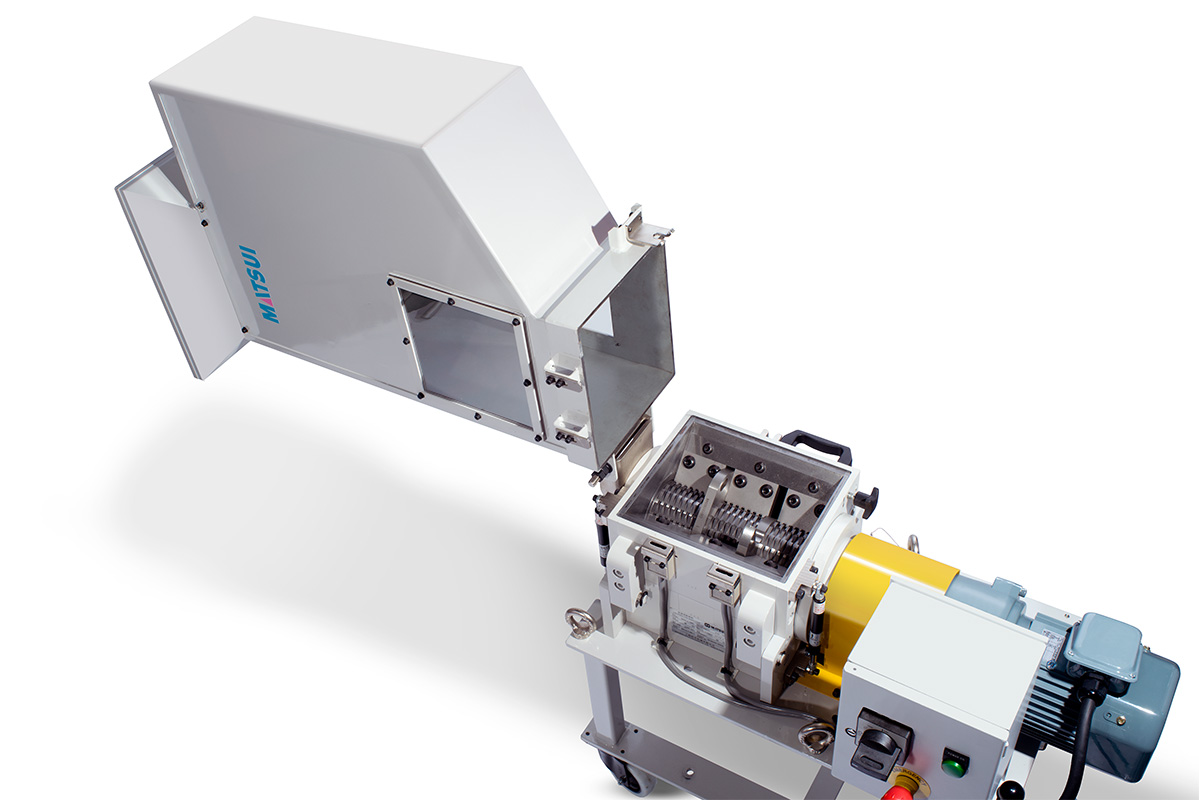

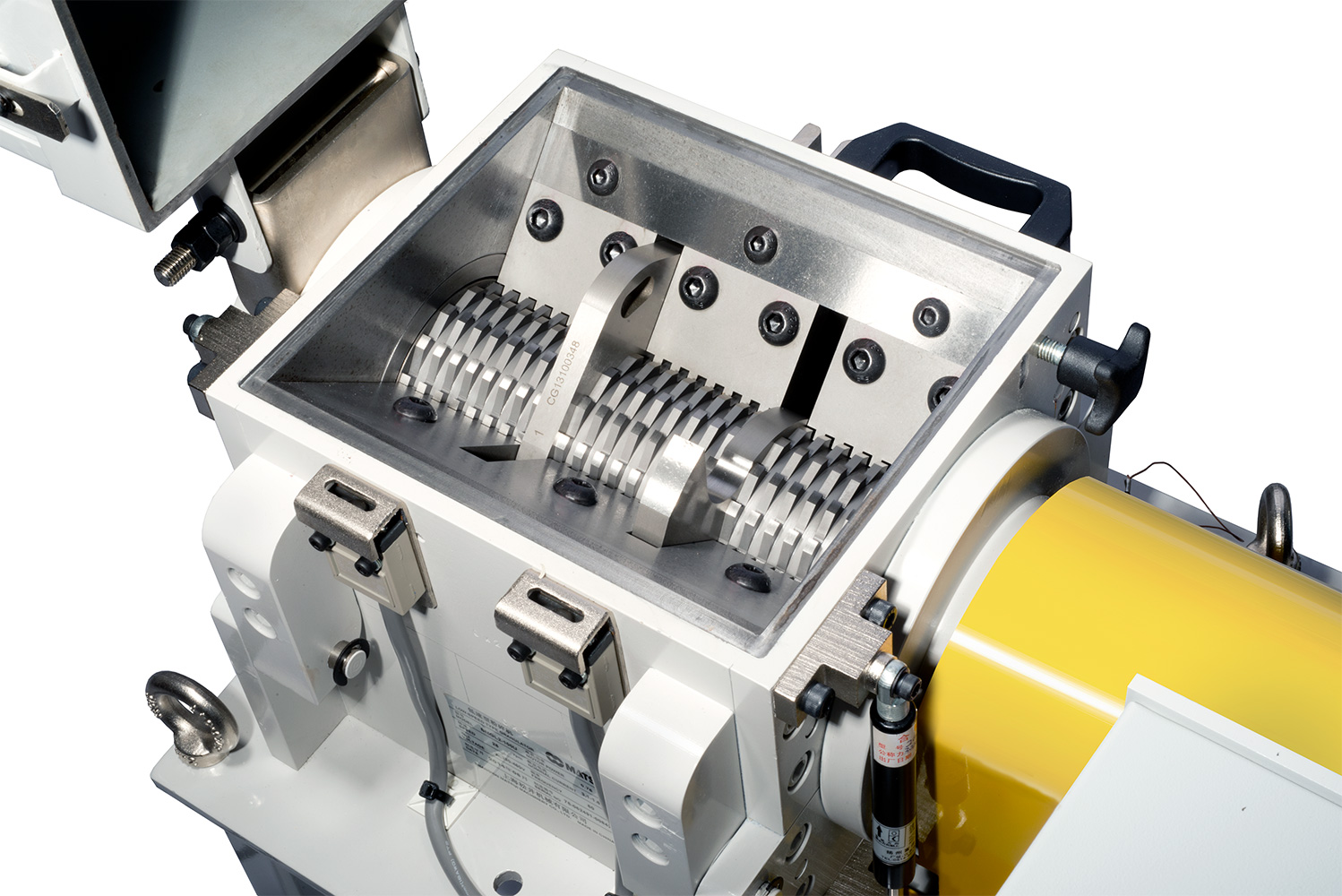

The SMGL2 opens wide to expose the grinding chamber and blades. Stainless steel parts clean up fast and reduce maintenance costs. Low speed cuts energy costs and minimizes dust. Various blade sizes are available to help create re-grind that flows smoothly into production.

SMGL2

Model SMGL2 SMGL2-100-U SMGL2-200-U
Power (volts) 230 or 460
Motor Capacity (hp) 1 2
Rotating Speed (rpm) 30 36
Small Rotating Cutters 3 _
Large Rotating Cutters 2 _
Bed Cutter 3 _
Crushing Bed Cutter 1 _
Guide Plate 1 3
Size of Runner Chute (inches) 13 x 9 15 x 12
Effective Chamber Dim (inches) 10 x 9 12 x 13
Machine Dimensions (inches) 34 x 17 x 59 40 x 20 x 61
Cutter Size (mm) 5 x 5 5 x 6
Seight (lbs) 430 606
Full Load 230/460v (amps) 10/5 10/5
Suction Hopper (ft3) 0.21 0.56
Processing Capacity ~6kg/h (13.2lb/h) ~12kg/h (26.4lb/h)
Max. Runner Dims w/d/h (inches) 8.6 x 5.9 x 3.9in 10.6 x 7.4 x 4.7in
Max. Runner Diameter (inches) 7mm (0.276in) 9mm (0.354in)
