SMGL Low-speed, Screen-less Grinder
Issues > Check/Troubleshooting
Capabilities of Granulator weakening. Grinding shapes will not match. Noise during operation
  1. Cutters rotating in reverse
  2. Clamps of feed hopper/cutter chamber not secured
  3. Particles in feed hopper/cutter chamber
  4. Insufficient gap between rotating* cutters and fixed cutter
  5. Fixed cutter or rotating* cutter blades are wearing/chipping

1. Cutters rotating in reverse
If cutters rotate in reverse, forward/backward will reverse, preventing granulating

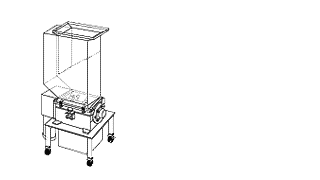

  1. Check rotating direction of motor by observing fan area.
  2. Negative phase if direction of rotation in reversed. Switch R-phase and T-phase of cord.
If problem persists
Return to top of the page
2. Clamps of feed hopper/cutter chamber not secured.
  1. Check to see if all clamps are securely tightened.
  2. If any of the clamps are loose, tighten securely.
If problem persists
Return to top of the page
3. Dust/Particles in feed hopper/cutter chamber.
If there are any dusts or particles (i.e. metal parts), they will interfere with cutters and cause noise.
Always begin work after turning power off!
  1. Remove feed hopper clamps and slowly open hopper to proper size.
  2. Check for dust/particles. Remove if necessary.
If problem persists
Return to top of the page

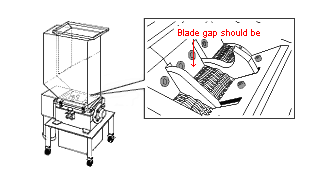

4. Insufficient gap between rotating* cutters and fixed cutter.
If gap between cutters are too wide, it may cause decline in grinding capabilities.
Always begin work after turning power off!
  1. Remove feed hopper clamps and slowly open hopper to side where hopper tips.
  2. Check for dust/particles. Remove if necessary.
SMGL cutter replacement
If problem persists

Return to top of the page
5. Fixed cutter or rotating* cutter blades are wearing/chipping
If the cutters are worn or chipped, it may weaken grinding capabilities
Always begin work after turning power off!
  1. Remove feed hopper clamps and slowly open hopper to side where hopper tips
  2. Check condition of cutter blades. If worn or chipped, replace cutter blades
Order Rotating (Small) Cutter Blades
Order Fixed Cutter Blades
Order Rotating (Large) Cutter Blades
Replacement of SMGL Cutter Blades
If problem persists

Return to top of the page
