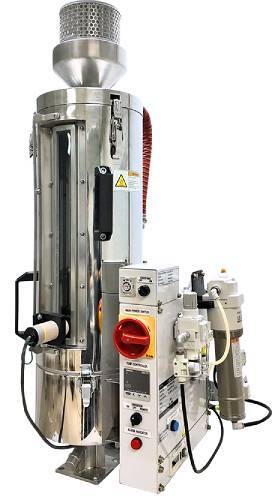

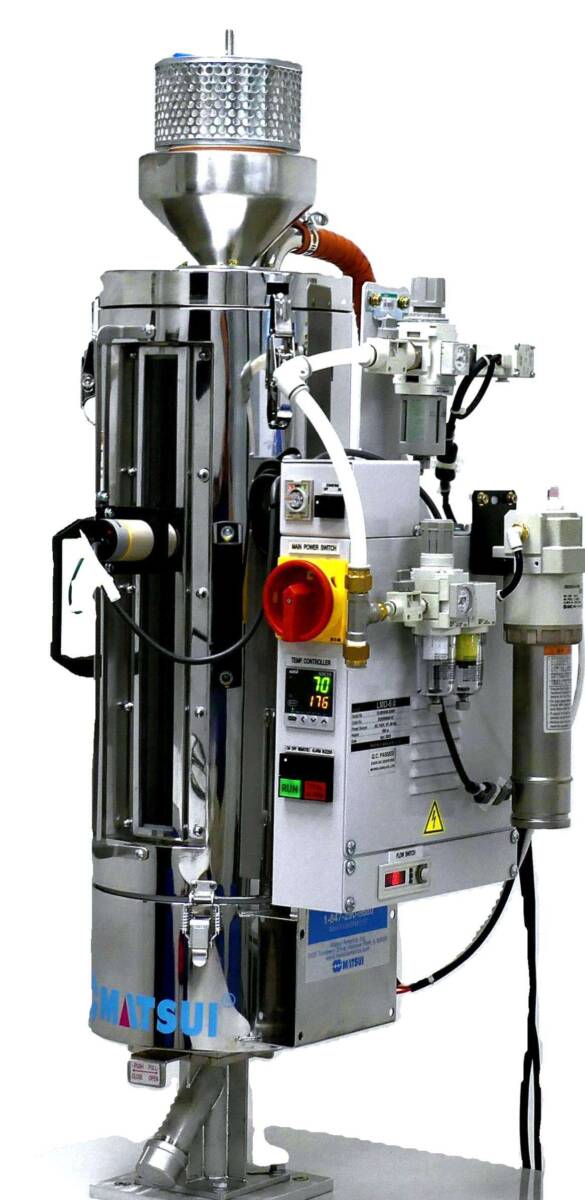

LMD
Small batch, desiccant
compressed air dryer.
Dryer for widely-used and Engineering Plastics.
Specifically designed for the small-scale drying of widely-used and engineering plastics.
Removes moisture and conditions materials.
LMD thoroughly dries hygroscopic resins quickly and efficiently.
Installed on the injection molding machine, so it does not take up space.
Compact & easy to clean, so no time is wasted.
Desiccant technology in a small package!

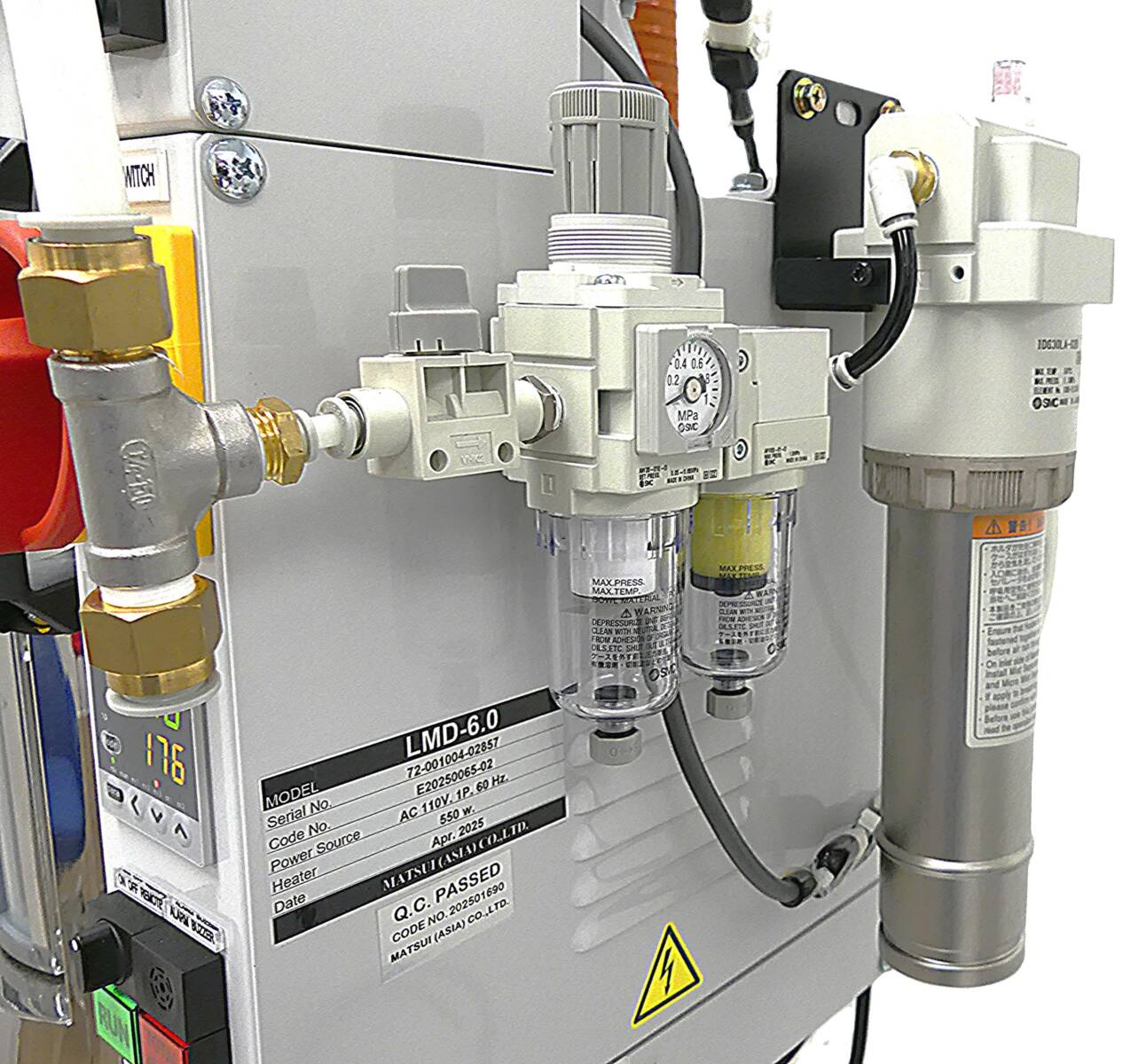

The LMD has the same performance as our legendary desiccant dryers, just for smaller throughputs. Using desiccant pack and compressed air, the air is sent through the diffuser like our traditional hopper dryers.
Fast material changes.
The insulated stainless steel hopper body is easily unclamped to clean and change material, helping you maximize production runs. The hopper is equipped with two handles for easy removal and sure-handed grabbing.
Programming made simple.

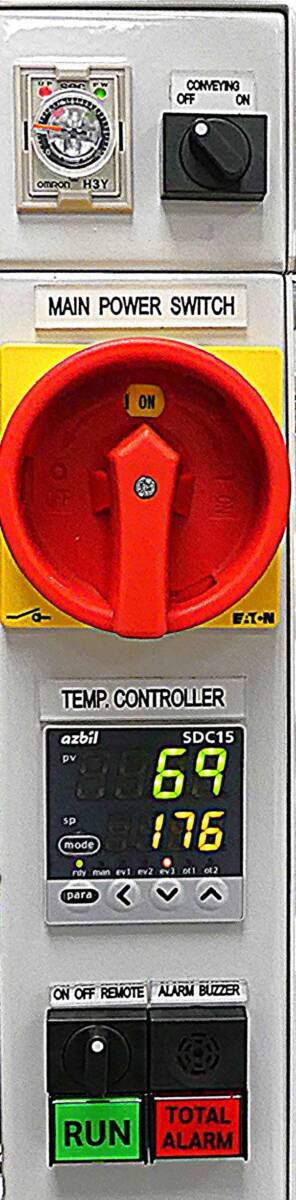

An easy-to-use temperature controller simplifies setup, enabling you to preset operations, monitor settings, and make changes effortlessly.
Virtually no-maintenance!
With a single desiccant pack designed to run for 10 years*, there is no reason to burden your maintenance crew as the dryer just keeps running and running! Another "set it and forget it" model from Matsui. Maximize your production- minimize your hassles!
*Based on running the unit 10 hours per day.
LMD Specifications
| Model LMD | 3.0 ~ 4.5 | 6.0 |
|---|---|---|
| Dry Temperature (°F) | 320ºF at ambient 68ºF | |
| Drying Method | Desiccant with Compressed Air | |
| Dew-Point (°F) | -40 F | |
| Drying Heater (w) | 350 | 550 |
| Power Supply (volts) | 100 - 120VAC | |
| Volume (lbs.) | 3.3~9.9 | 13.2 |
| Hopper Volume (ft3) | 0.26 | 0.35 |
| Approximate Throughput (lbs./hr) | 3 ~ 6.5 | 4.5~ 8 |
| Power (a) | 4 | |
| Air-Flow Rate (ft3/min) | 0.35 ~ 2.1 | |
| Weight (lbs) | 55 | |
| Approximate Dimensions (inches) | 16"W x 18"D x 39.5"H | |
| Mounting Plate (inches) | 4" x 4" with 1.2 inch throat | |

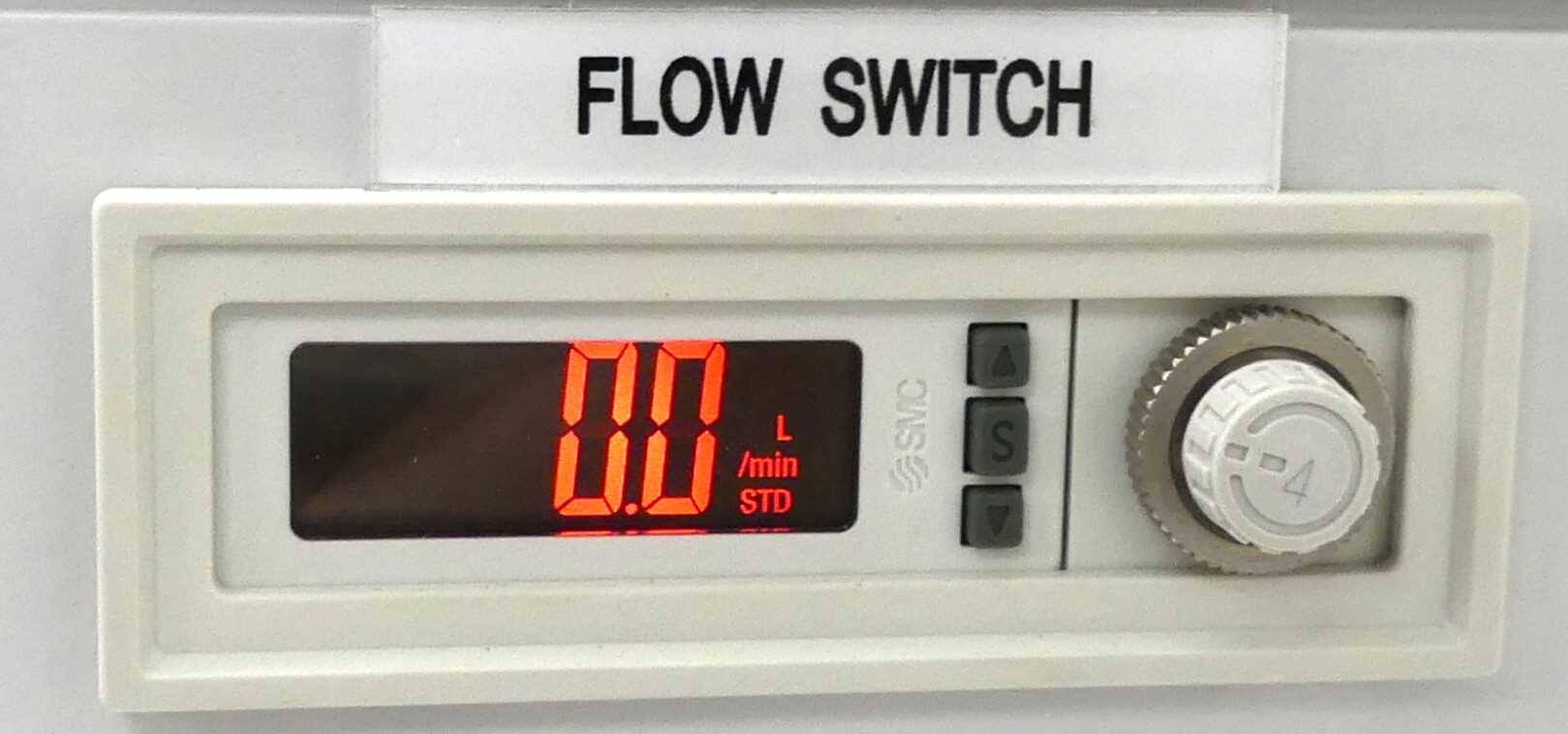

| Standard Features | Automtic Hopper Loading, Air-Flow Meter, Remote Start, Total Alarm, Adjustable Capacity, Material drain port | |
| Available Options | RS-485 Communication control | |
