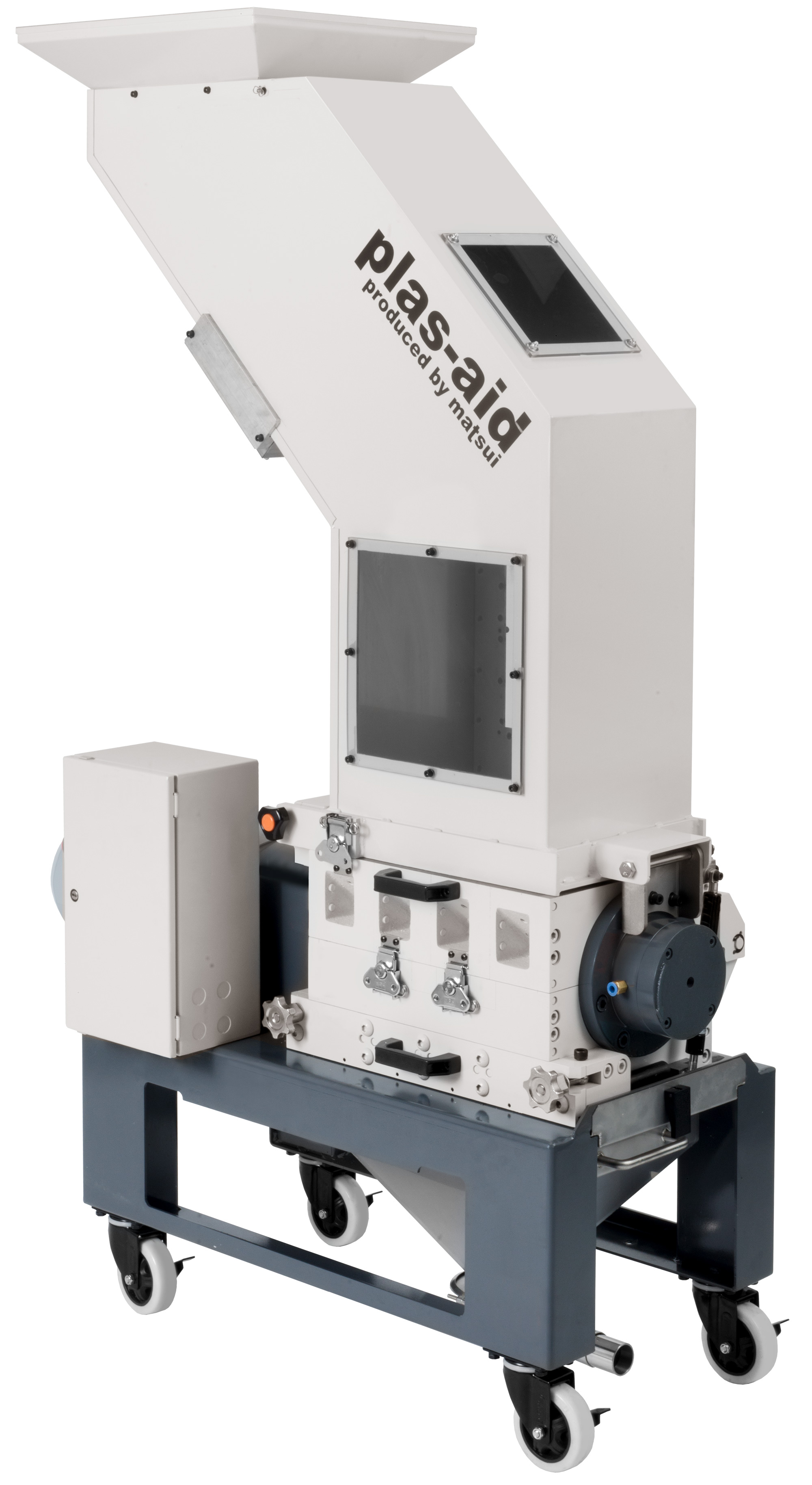

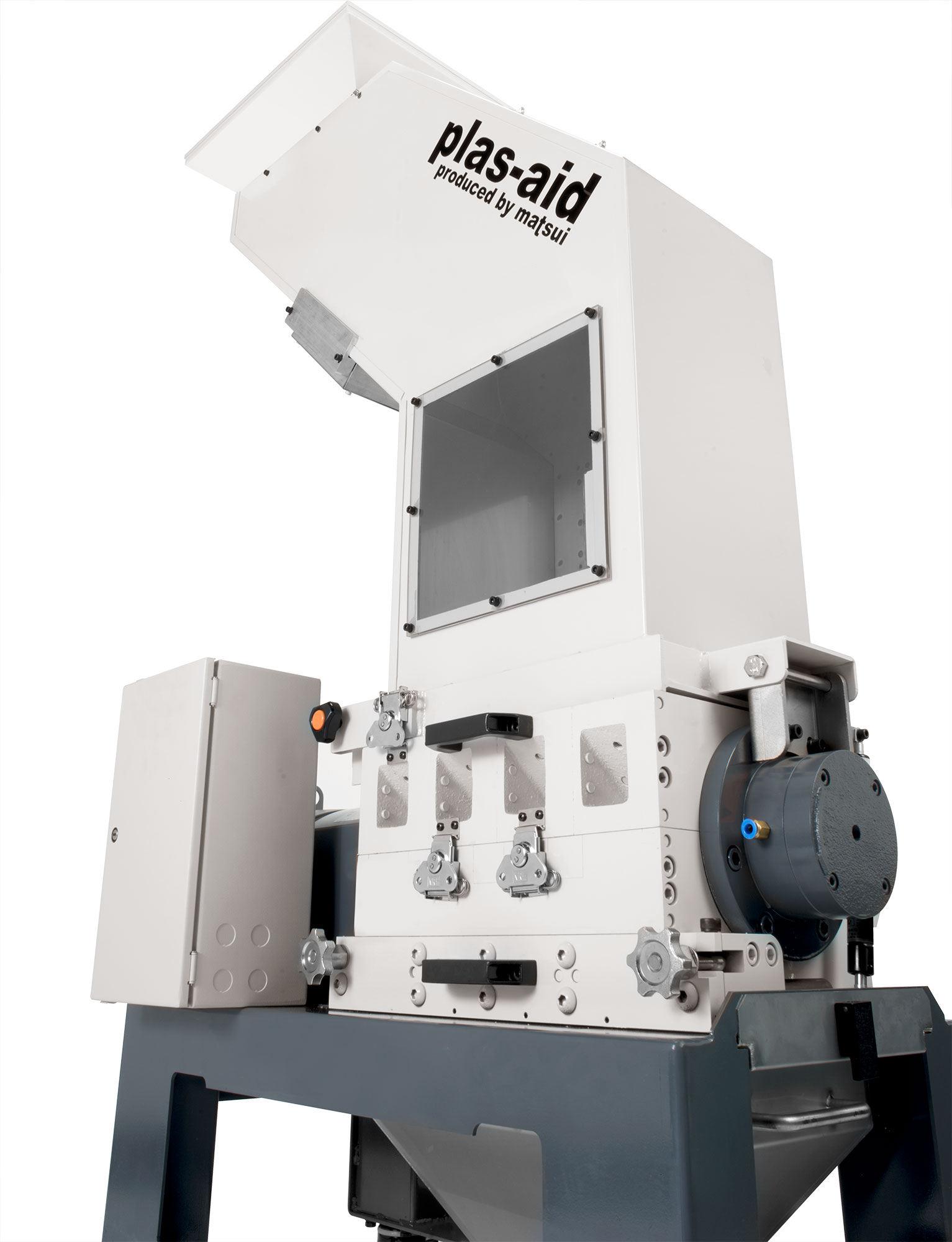

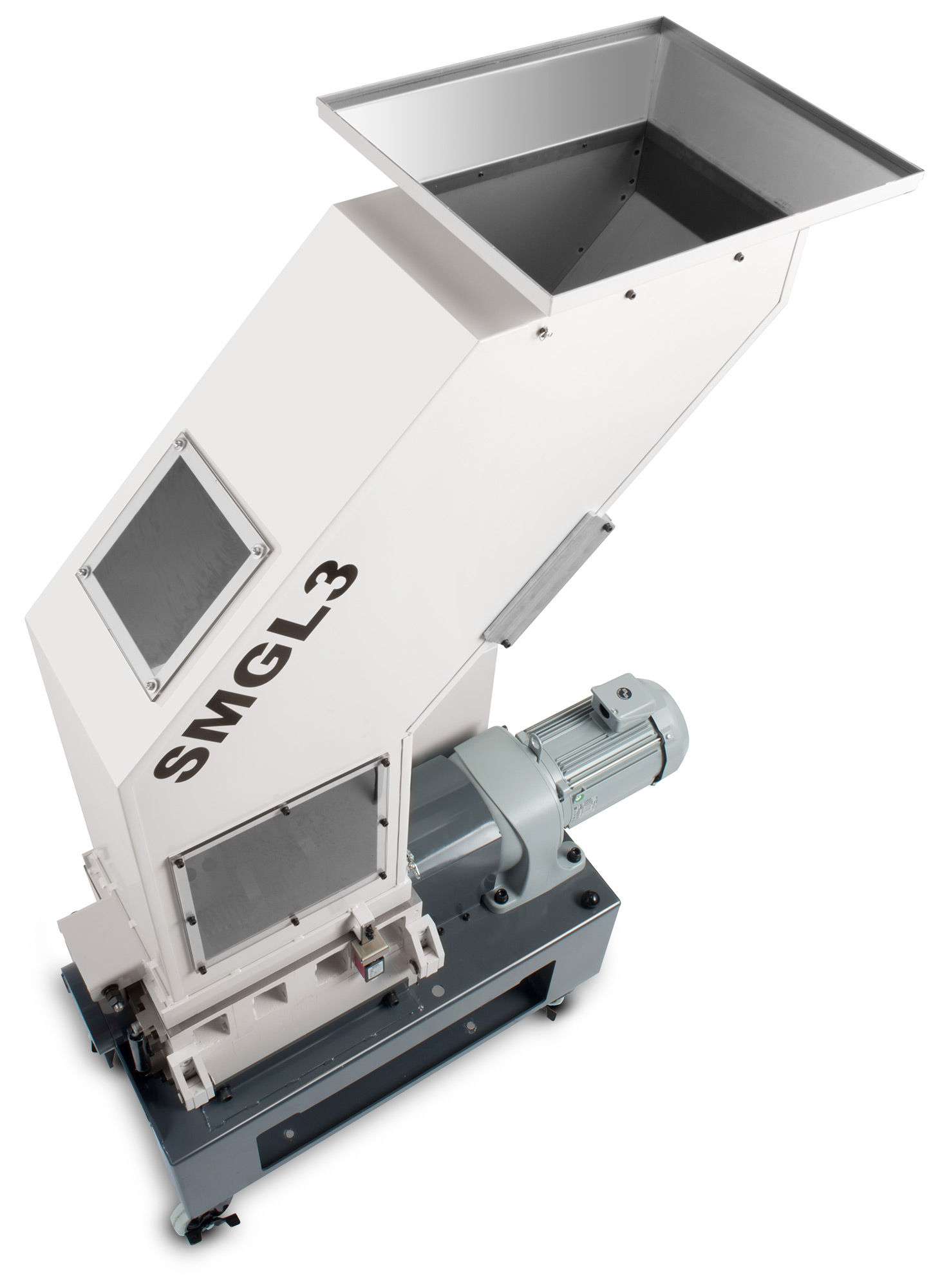

SMGL3

Portable low-speed grinder
produces uniform cut size with minimal dust


SMGL3-1mb
SMGL3-2
SMGL3-3
SMGL3-4
SMGL3-1mb
SMGL3-2
SMGL3-3
SMGL3-4
previous arrow
next arrow

A larger knife area is paired with a smaller motor so you grind more with less energy. Sharp, hardened-steel knives improve cutting and last longer. Even the stationary cutters, scrapers and stationary crushing cutters can be flipped to provide a new, sharp cutting surface. The SMGL3 low-speed, energy-saving, granulator grinds to a consistent size. Dusting and cutting errors are reduced, and no “longs” can slip through.

smgl3-safe-2

Quiet, safe operation

Chute and cutting chamber are re-designed for lower decibel levels. Units are also equipped with three limit switches and an emergency shut-off button. An integrated thermostat helps prevent the motor from overheating.

Small footprint and portable

The SMGL3 has a smaller footprint. And it can be completely cleaned from one side of the grinder. So it can tuck neatly into a convenient, out of the way place or close to a machine.

Easy-to-clean and virtually maintenance free

Hardened-steel components and easy-to-clean design make changing material and color a snap. SMGL3‘s are screenless, so there is even less maintenance and no screen to wear out and replace. The smart, simple design means years of reliable, maintenance-free operation.

smgl3-resin (2)

Clean up and resin changes are fast and easy

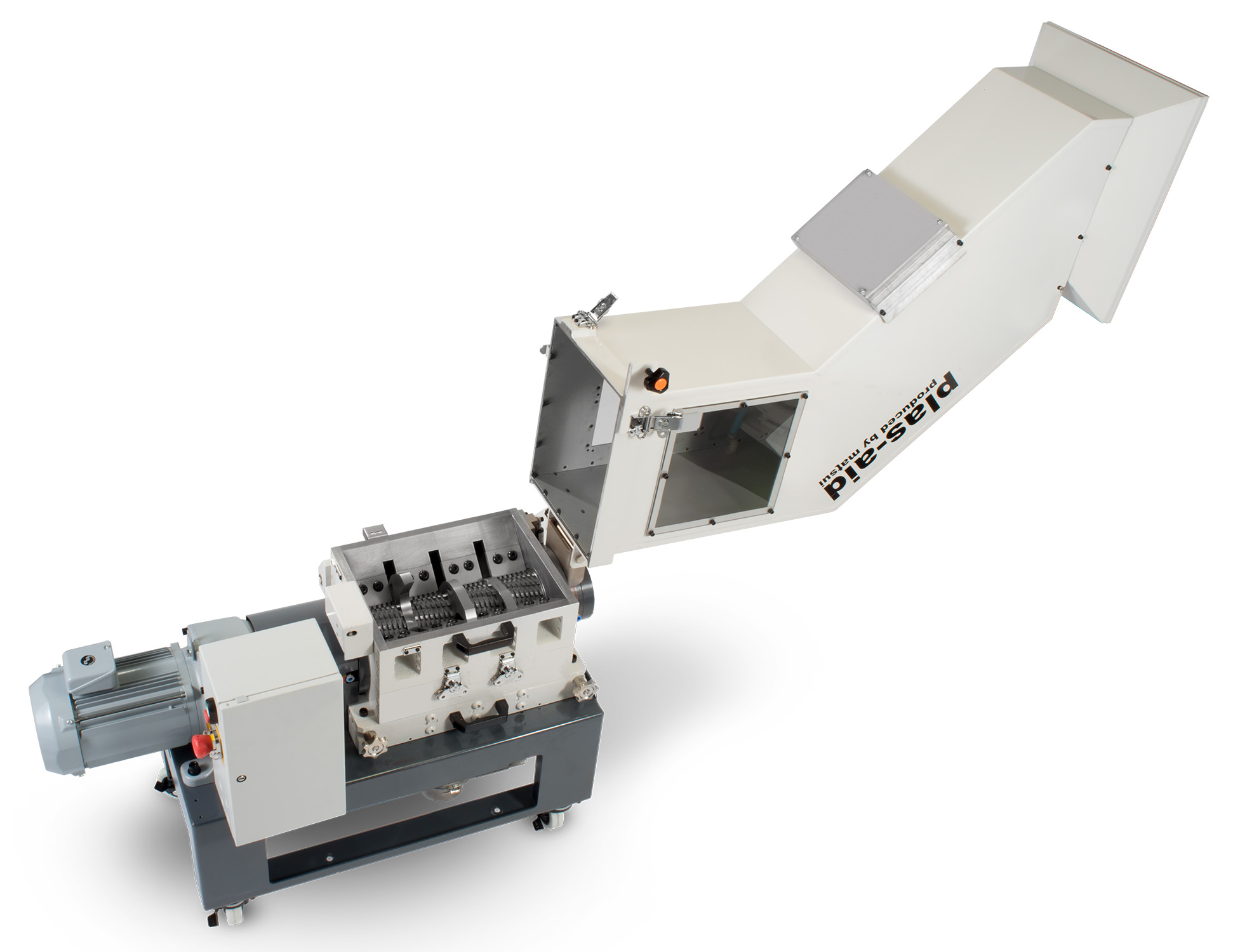

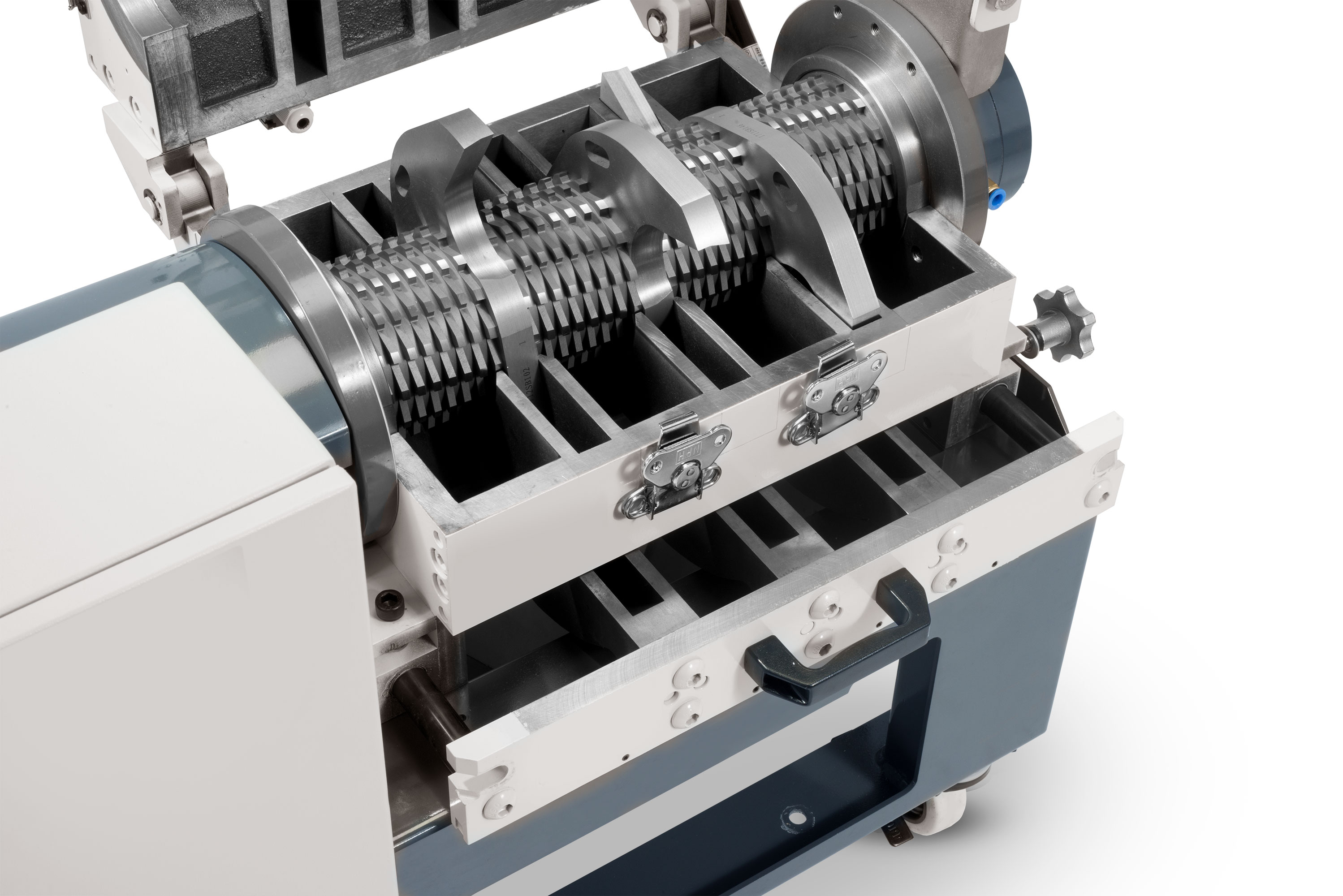

No need to spin the SMGL3 to clean both sides. You access every cleaning surface from one side of the grinder. It opens wide to expose the grinding chamber and blades. The cover lifts to completely expose the hardened steel blades and cutting bed. The lower cutting bed drawer pulls out. Hardened-steel parts clean up fast and reduce maintenance costs.

Productivity, quality and safety is in the details

smgl3-grid1 (1)

Piston assists raising and lowering steel the cutting chamber cover.

smgl3-grid2 (1)

Multiple safety switches ensure the cutting chamber is disabled during maintenance.

smgl3-grid3 (1)

Take-off can be rotated 360º to simplify hook-ups.

smgl3-grid4 (1)

A powerful chute magnet captures metal and protects the hardened steel cutting blades.

SMGL3

Model SMGL3 SMGL3-G1-1/2 SMGL3-G1-2/3 SMGL3-G1-3/4 SMGL3-G1-4/5
POWER (VOLTS) 230 / 460, 3P, 60 Hz
MOTOR CAPACITY (HP) 0.5 1.0 2.0 2.0
ROTATING SPEED (RPM) 30
CUTTERS 5X5 5X5 5X5 5X6
SMALL ROTATING CUTTERS 2 3 4 5
LARGE ROTATING CUTTERS 1 2 3 4
CUTTING CHAMBER (mm) 167 X 262 261 X 262 355 X 262 449 X 262
THROUGHPUT (kg/hr) 5 10 15 20
MAX. RUNNER DIMS W/D/H (mm) 150x240x120 250x240x120 345x240x120 435x240x120
MAX. RUNNER DIAMETER (mm) 7mm 7mm 7mm 9mm
OUTER DIMENSIONS (mm) W 725 895 1080 1170
OUTER DIMENSIONS (mm) W1 140 230 325 420
OUTER DIMENSIONS (mm) W2 1600 1770 1955 2045
OUTER DIMENSIONS (mm) D 458
OUTER DIMENSIONS (mm) D1 260
OUTER DIMENSIONS (mm) D2 470
OUTER DIMENSIONS (mm) H 1605
OUTER DIMENSIONS (mm) H1 395
OUTER DIMENSIONS (mm) H2 655
