MC5-G3-HH

High-Temperature (water) Mold Temperature Controller
Crank up the heat!

MC5-G3-100HH180_L
MC5-HH screen
MCHH flow
MCHH side small
MCHH detail small
MC5-G3-100HH180_L
MC5-HH screen
MCHH flow
MCHH side small
MCHH detail small
previous arrow
next arrow

Designed for today's challenging engineered materials like PEEK, PES and PPS, the MC5-G3-HH is the latest in Matsui mold-temperature controllers. It reaches higher temperatures using water (356°F / 180°C) so you can bypass the mess and stress of traditional, bulky, old-fashioned oil units. It uses less kilowatts in the process, but thanks to it's hassle-free dual high-pressure pumps, it can handle all the heat you need for your high-heat applications. The high-pressure cascade pump works perfect for custom, micro-molding and any molds with narrow passages. It also features a heat-exchanger, so pressure loss issues are a thing of the past! And it has our bigger, feature-packed, user-friendly control panel, yet has a small footprint, so it slips in and out of the smallest places. Just set it, and let it crank up the heat to new heights!

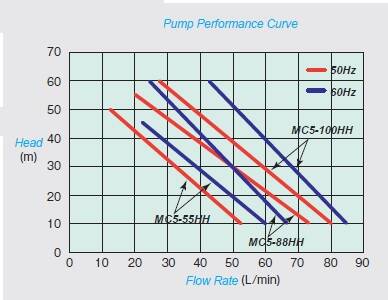

MCHH Pump curve

More power = more productivity

Powerful pump & heater:  The MC5-HH reaches target temps within 1° of set point fast, and takes samples 4 times/second to maintain optimum levels throughout production. So you can mold more parts faster and better, boosting productivity and your bottom line.

Indirect Cooling: By having the unit capable of separating the cooling water and circulating water, the MC5-HH is less susceptible to poor water quality having an influence on molds, etc. because scales and impurities are isolated, and therefore reduced.

MC5-HH screen

Intuitive, touch-and-go programming

MC5-G3-HH’s large touchscreen lets you store up to 64 different temperature settings, preset operations, monitor progress, detect errors, improve maintenance and more. The advanced "G3" panel is standard. Communication features such as SPI & Modbus come standard, plus OPC-UA (option) is possible.

MCHH back small

Maintenance teams love MC5-HH, too

Utilizing a high-pressure circulating pump, plus a pressure-booster pump, the unit keeps on trucking when you need it.  Utilizing pressurization control, auto-air-venting, and rock-solid components like solid-state relays for heater controls, they all ensure the unit stays running. Other quality critical components are made of stainless steel. An electric safety disconnect switch prevents accidental start-ups.

MCHH side small

Small footprint

One of the smallest, most mobile mold temperature controllers, the MC5-HH fits into tight production spots where others cannot. And with casters built into the base, it’s easy to move from machine to machine.

4 models to choose from

The new MC5-G3-HH comes in two pump sizes: 55 or 100 liters-per-minute (L/m), and either 230v/460v- with advanced designs for use with high temperature 180°C /  356°F water as the medium. The MC5-HH units offer even more programming features and communication protocols, as standard, and the rock-solid reliability you expect from a Matsui TCU.

Heater and pump sizes on the new MC5-HH are optimized for performance, minimizing energy consumption. The unit’s precision control software and technologically advanced circuitry reduce heater “on” time up to 8%, increasing your energy savings, while increasing your mold heat-up times.

Standard "G3" units of the new MC5-HH are in stock and ready to ship. They come with everything needed for installation, including 4-way / 6-way manifolds and ball valves. There’s also an adjustable pressure bypass valve allowing you to tailor and optimize performance for different jobs / mold sizes.

Overhead View (panels removed)

MCHH overhead small

New standard features of MC5-HH:

  • Stores up to 64 temperature settings
  • Timed switching (10 sets of 10 temperature values)
  • Temperature control programming
  • Displays estimated setup temperature waiting time
  • Heating and cooling error detection
  • Programmable slow cooling
  • Variable temperature control programming
  • Programming to stop unit automatically at a preset temperature
  • Set value switching

Other standard features:

  • Digital temperature display
  • Reverse-phase detection
  • Operation monitoring
  • Alarm indication of pump overload, abnormal sensor, low level, low/high temperature, machine maintenance
  • Automatic pressure relief
  • Heat-resistant water level detection switch
  • Dual Pressure gauges (Process & Booster Pumps)
  • One-touch display of set values on control panel
  • Remote operation of start/stop
  • Automatic air venting at start-up

Standard features of MC5-HH Control Panel:

  • Intuitive, user-friendly operation
  • Easy to read LCD display visible even in bright lighting
  • Displays PV, set values, alarm status, operation status, overloads/errors, estimated setup temperature waiting time
  • Option to display error history
  • Function for programming temperature control
  • Calendar function
  • SPI or MODBUS communications board
  • Can display flow rate and pressure (requires sensor)

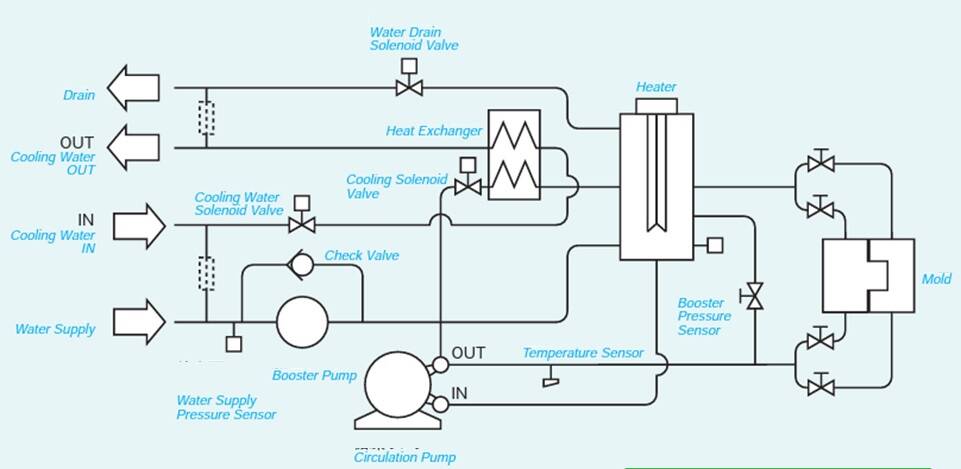

Flow Diagram

MCHH flow

MC5-G3-HH

Model type: MC5-G3-55HH180 MC5-G3-100HH180
Power supply voltage 230V or 460V, 3P 50/60 Hz
Apparent Power (kVA) 11.3 17.7
Breaker capacity Amperage 40 63
Medium Fresh Water (soft water)
Maximum water temperature 180ºC / 356ºF
Cooling water Pressure 0.3 MPa Medium Temp. & Cooling water delta @ 70ºC / 158ºF = 4.2 kW Medium Temp. & Cooling water delta @ 140ºC / 284ºF = 8.2 kW
Heater capacity 9kW 14kW
Max. pump flow rate (L/min) - 60Hz 60 85
Pump motor : Cascade Pump, Non-seal type (kW) 1.1 2.2
Pump performance Refer to pump performance chart (above)
Water level detection Float switch
Cooling method Indirect Cooling
Temperature controller input K-type thermocouple
Water supply port ø 10.5 (3/8"B) hose nipple & strainer
Water drain port ø 10.5 (3/8"B) hose nipple
Medium-Supply and Return ports 3/8"B x 4 ball valves 3/8"B x 6 ball valves
Drain port 3/8"B purge
Approx. dimensions w/l/h (inches**) 9.2 x 36.6 x 25.3 10 x 36.6 x 28.9
Product Weight 70 kg / 154 lbs. 100kg / 220 lbs.
