HD2 Portable Hot Air Dryer |
|
| Possible Causes | To Possible Causes of HD2 | |
|
Click here for detailed drawing (pdf 48k)
*Number in parenthetheis are Japanese check items.
|
||||||||
Reverse Phase
|
(Alarm) Will occur when the power cord connections are in reverse phase. |
|
Return to top of page |
Blower Overload
|
(Alarm) Will occur when an electromagnetic switch thermal relay trip is caused by an overcurrent in the blower. Operation will automatically stop. |
|
Return to top of page |

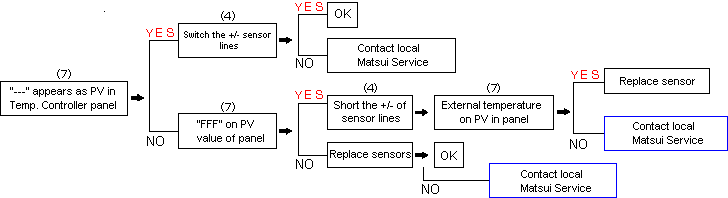

Sensor Disconnect
|
(Alarm) Will occur when a CA sensor or its wirings are disconnected. Operation will automatically stop. |
|
Return to top of page |

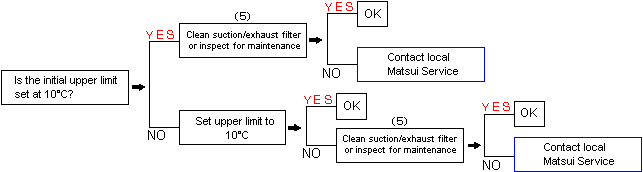

Upper Limit
|
(Alarm) Will occur if "set temperature + upper limit set temperature" happens to drying temperature. Operation may stop or continue depending on state of run during Upper Limit Alarm. |
|
Return to top of page |

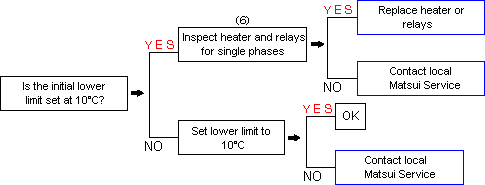

Lower Limit
|
(Alarm) Will occur if "set temperature - lower limit set temperature" happens after drying temperature reaches the set temperature. Operation will continue. |
|
Return to top of page |
Temperature will not increase
|
|
|
